VB350

Dual Lens PTZ Video Bar With a Hybrid 18X Zoom for Medium & Large Rooms

With a streamlined design, dual 4K lenses, seamless lens switching, upgraded audio technology, and simple setup, the VB350 is the ultimate all-in-one solution for next-level video meetings. Level up to premium audio and video by using this powerful new video bar in your mid-to-large conference rooms.

Features

Hybrid 18X Zoom Captures Farther and Clearer

  • Elevate your video meeting experience with the VB350 and its dual 4K lens technology. Boasting a 113° field of view and hybrid 18X zoom, the VB350 captures crystal-clear images of the foreground and background in meeting rooms up to 7 meters deep.

Stable Lens Switching Enables Inclusive Hybrid Teamwork

  • Don’t let jarring lens transitions interrupt your meetings. The VB350’s stable lens switching captures attendees in sharp detail, even when they sit far from the camera. Enjoy seamless conversations thanks to ultra-smooth lens shifting.

Smart ViewShift Reduces Movement Sensitivity

  • The VB350 has just become even smarter with the latest firmware upgrade! The new Smart ViewShift function is designed to enhance your video conferencing experience by reducing movement sensitivity during audio tracking. With various transition effects, the camera smoothly shifts focus to the target person, providing remote participants with a more comfortable and stress-free call experience. Say goodbye to jarring movements and hello to seamless transitions.

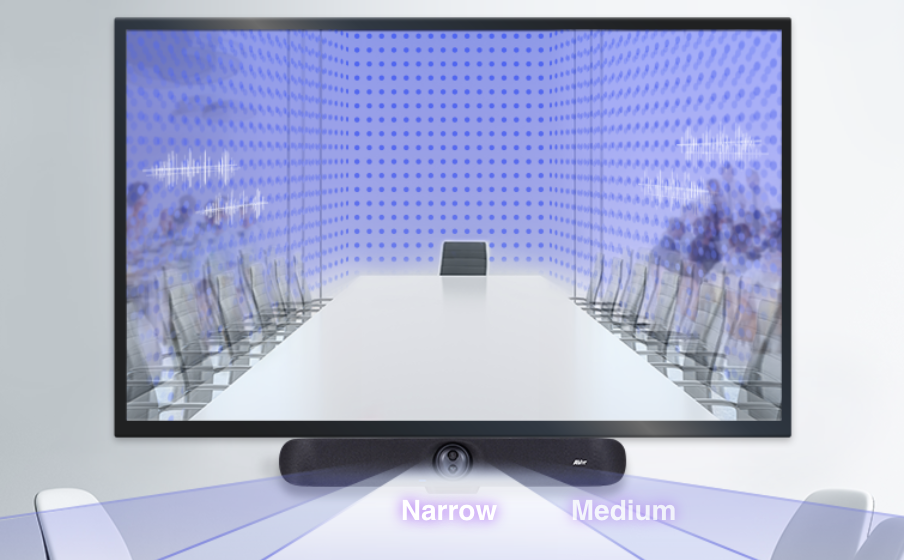

Audio Fence Eliminates Background Noise

  • Say goodbye to unwanted noise with AVer’s audio fence technology. This feature blocks out background distractions and captures only the voices within the camera’s viewing area. Now you can have uninterrupted remote collaboration even in open workspaces.

14-Microphone Array Delivers Lifelike Audio

  • Enjoy clear and natural-sounding voices in your meetings. The VB350 is equipped with a 14-element microphone array pickup that precisely reproduces resonant sound from up to 10 meters away. Experience seamless conversations and lifelike audio that makes your remote meetings feel like in-person gatherings.

VB350 Intro Video

With a streamlined design, dual 4K lenses,seamless lens switching, upgraded audio technology, and simple setup, the VB350 is the ultimate all-in-one solution for next-level video meetings. Level up to premium audio and video by using this powerful new video bar in your mid-to-large conference rooms.

VB350 Specs

Specifications may vary and are subject to change without notice.

    • 4K dual-lens technology delivers a wide 113° field of view (FOV) with 18X zoom

    • - 4K 3X varifocal lens: FOV (D/H/V) 92°/81°/50°

    • - 4K fixed lens: FOV (D/H/V) 113°/105°/71°

    • Sony 4K sensor: ultra-crystal-clear image in any lighting

    • Frame rate: (16:9) 1280 x 720 at 60, 30, 15fps; 4K, 3264 x 1836, 2560 x 1440, 1920 x 1080, 1600 x 900, 960 x 540, 848 x 480, 800 x 448, 640 x 360 at 30, 15fps; (4:3) 1280 x 960, 800 x 600, 640 x 480 at 30, 15fps

    • Adjustable audio fence: Freedom to define wide/ medium/ narrow view fence

    • SmartFrame & SmartSpeaker: Automatic tracking and FOV adjustment to fit all participants and focus on the speaker

    • Presentation mode: Voice-triggered tracking on both defined areas and speakers

    • Smart gallery* function enhances visibility

    • Gesture control for intuitive camera control

    • WDR, white balance and more image settings via PTZApp 2

    • Minimum focus distance: 100 cm

    • People counting API: Enterprises and third-party software providers can obtain people-counting and meeting-interval data tor better understand meeting space usage

    • 14-element beamforming microphone array

    • 10 meters pickup range*

    • Volume up to 96 dB SPL at 1/2 m

    • Echo cancellation

    • AI noise suppression

    • 12V/5A power adapter

    • Mini DIN 6 for RS-232 connection

    • USB 3.1 type B port, backward compatible with USB 2.0

    • HDMI out connection (USB to HDMI adapter)

    • Phone-in (3.5 mm audio Jack)/speaker-out for HA system*

    • RJ45 ports x2: one for Ethernet, one for audio expansion speakerphone/ microphone

    • USB 2.0 type A x3: Wireless connection**, USB to support IFP USB touch back, and expansion port

Other Specifications

    • YUV, YUY2, MJPEG

    • Network video compression format: H.264, H.265

    • Network protocols: RTSP, RTMP*

    *When USB streaming is in use, RTSP and RTMP are not available.

    • 3.1 Gen 1, backward compatible with USB 2.0

    • UVC 1.1 (USB video), UAC 1.0 (USB audio), UVC1.5*

    *UVC1.5 requires an additional firmware upgrade. Please contact technical support for more details.

    • IR remote control

    • WebUI: IP access via Chrome browser (Chrome 76.x or later; Internet Explorer not supported)

    • UVC/UVA plug-and-play

    • PTZApp 2

    • Wall-mount bracket (included)

    • TV VESA mount kit (optional)

    • Kensington security lock

    • Mini DIN 6 to RS-232 adapter

    • TV VESA mount

    • 10 m/20 m expansion microphone

    • 10 m/20 m expansion speakerphone

    • 10 m/20 m/30 m USB 3.1 extender cable

    • 5 m USB 2.0 type B to type A cable

    • Wireless dongle (for connecting with mobile phone)

    • Audio-out converter (TRS female to TRRS male)

    • Camera: 3 years

    • Accessories: 1 year

    • Windows® 7/10/11

    • Mac OS X 10.14 or later

    • Chromebox 3 version 94.0.4606.114 or later

    • 3.2 GHz Intel® Core™ i5-4460 processor

    • 4 GB RAM or more

    • USB 3.1 port, backward compatible with USB 2.0

    • AC 100V–240V, 50/60 Hz

    • Consumption: 12V/4.5A

    • Operation temperature: 0 ~ 40°C

    • Operation humidity: 20% ~ 80%

    • Storage temperature: -20 ~ 60°C

    • Storage humidity: 20% ~ 80%

    • Package dimensions: 872 mm (L) x 197 mm (W) x 260 mm (H)

    • Package weight: 7.4 kg

    • Camera: 791 mm (L) x 128 mm (W) x 126 mm (H)/3.3 kg

    • Remote control: 150 mm (L) x 42 mm (W) x 19 mm (H)/50 g

    • VB350 unit

    • Power adapter & cable

    • USB 3.1 type B to type A cable (3 m)

    • USB 3.1 type A to type C adapter

    • QR code card

    • Wall-mount bracket

    • Tripod Screws

    • Remote control

    • Wall-mount drill paper

    • Zoom, Microsoft® Teams, Skype for Business, Skype, Google Meet™, Intel® Unite™, RingCentral, BlueJeans, V-Cube, LiveOn, CyberLink U Meeting®, TrueConf, Adobe® Connect, Cisco WebEx®, Fuze, GoToMeeting™, Microsoft® Lync™, Vidyo, vMix, WebRTC, Wirecast, XSplit, V Cube

  • EZManager 2: Camera Central Management Software

    • Remotely group FW/SW upgrades, control the camera, and manage settings

    PTZApp 2: Camera Setting Software

    • View live video, people counting number, meeting interval information

    • Enable Skype for Business far-end control

    • Upgrade firmware automatically or manually

    • Control the camera

    • Set parameters and adjust the camera image

    • Diagnose operating status

    EZLive: Broadcasting Software

    • Enjoy multi-camera real-time streaming, annotating, image capturing, and video recording

Product Info

Front

Front

Back

Back

Side

Side
